Bottom outlet valve (60°) gap free with pneumatic actuator
Bottom outlet valve (60°) gap free with pneumatic actuator（Side cylinder）搪玻璃上展式自動放料閥（側向執行機構） *內置測溫氣動放料閥.The inorganic acid, organic acid, weak alkali solution and organic solvent are superior to stainless steel in strong corrosive media such as hydrochlor
ONLINE
Bottom outlet valve (60°) gap free with pneumatic actuator（Side cylinder）
Operating environment: The inorganic acid, organic acid, weak alkali solution and organic solvent are superior to stainless steel in strong corrosive media such as hydrochloric acid, nitric acid, and aqua regia. Can not be used for liquids containing fluoride ions (such as hydrofluoric acid, etc.), nor can it be usedfor strong alkalis and concentrated phosphoric acid with a temperature ≥180°C.

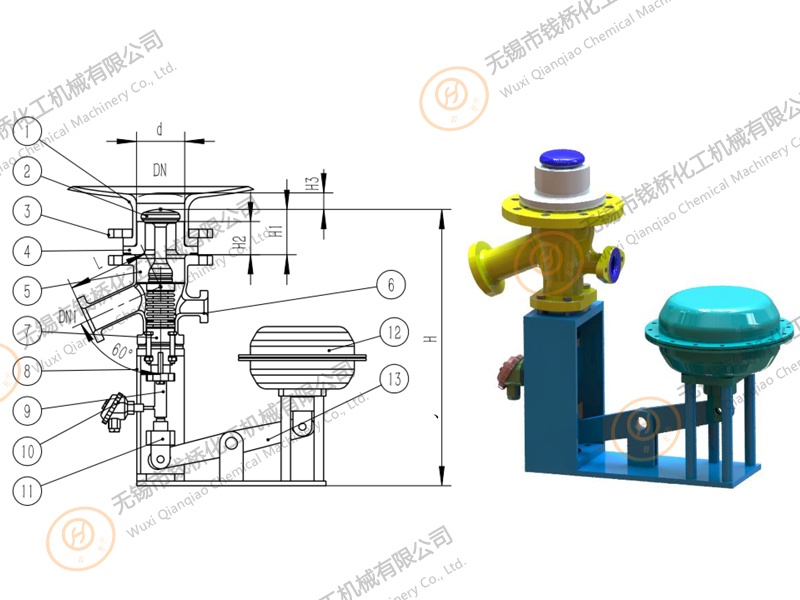

CLEANING POSITION，7、CORRUGATED PIPE，8、VAVLE STEM，9、COUPLING，10、
TEMPERATURE SENSOR，11、HINGE，12、CYLINDER 13、LEVER
Operating temperature:-19°C~200°C (Sudden temperature change less than 120°C)
Operating pressures：-0.1MPa~1.0MPa
Operating environment: The inorganic acid, organic acid, weak alkali solution and organic solvent are superior to stainless steel in strong corrosive media such as hydrochloric acid, nitric acid, and aqua regia. Can not be used for liquids containing fluoride ions (such as hydrofluoric acid, etc.), nor can it be usedfor strong alkalis and concentrated phosphoric acid with a temperature ≥180°C.
Operating pressures：-0.1MPa~1.0MPa
Operating environment: The inorganic acid, organic acid, weak alkali solution and organic solvent are superior to stainless steel in strong corrosive media such as hydrochloric acid, nitric acid, and aqua regia. Can not be used for liquids containing fluoride ions (such as hydrofluoric acid, etc.), nor can it be usedfor strong alkalis and concentrated phosphoric acid with a temperature ≥180°C.
